Sliding Liner System



Aluminum-Beam

 -invented by us
-specially developed for the industrial sanding of panels
-easy handling without any tool
-no complicated exchange and repair of the aluminium beam
-metal eyelet ensures discharge of electrostatic charge
-exchange of graphite and padding in a few seconds
-the best possible sanding results obtained through minimum tolerances
-no displacement of the padding possible



Inserts Green Line

 -as a further development of the previous standard inserts
-standard slide width of 40 mm and 55 mm, total width 83 mm
-length up to 3500 mm
-bottom grooved, channels cause an air circulation against heat development
-material savings as a positive side effect
-four different paddings: Latex, PES, Foam hard und Foam (hard to soft)

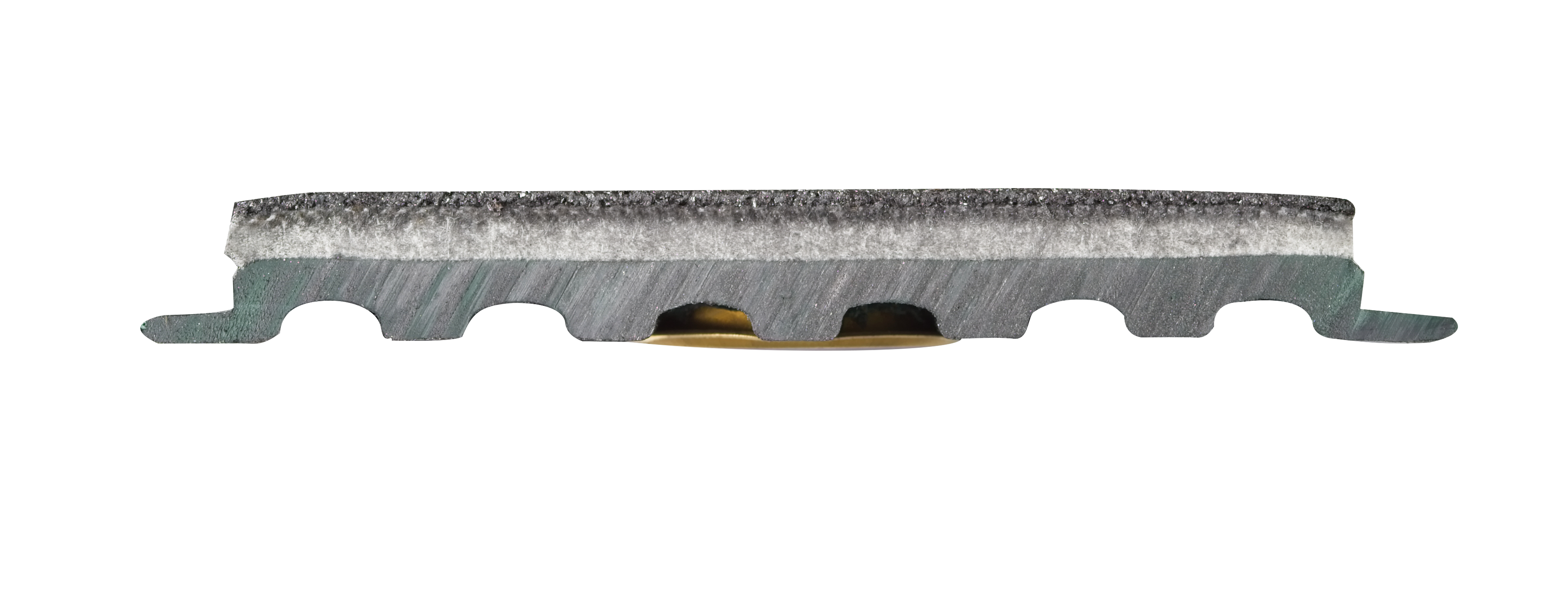

Foam soft

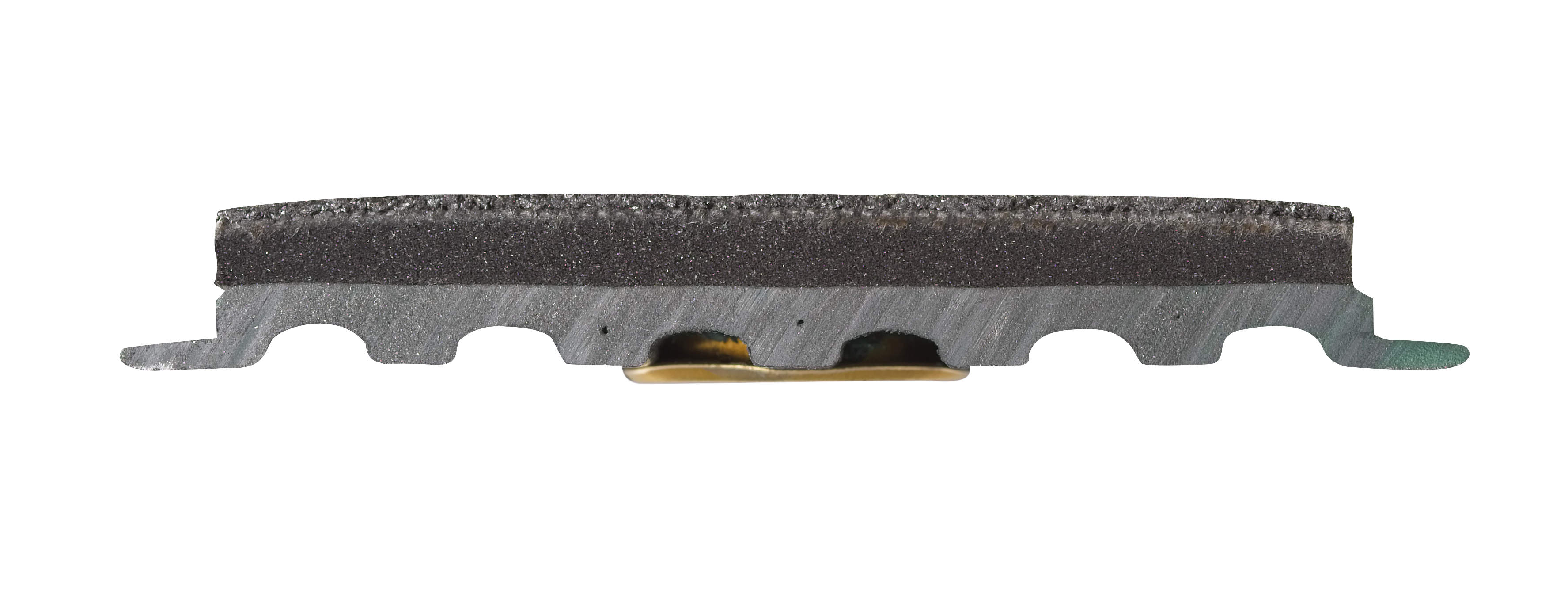

Foam hard




PES

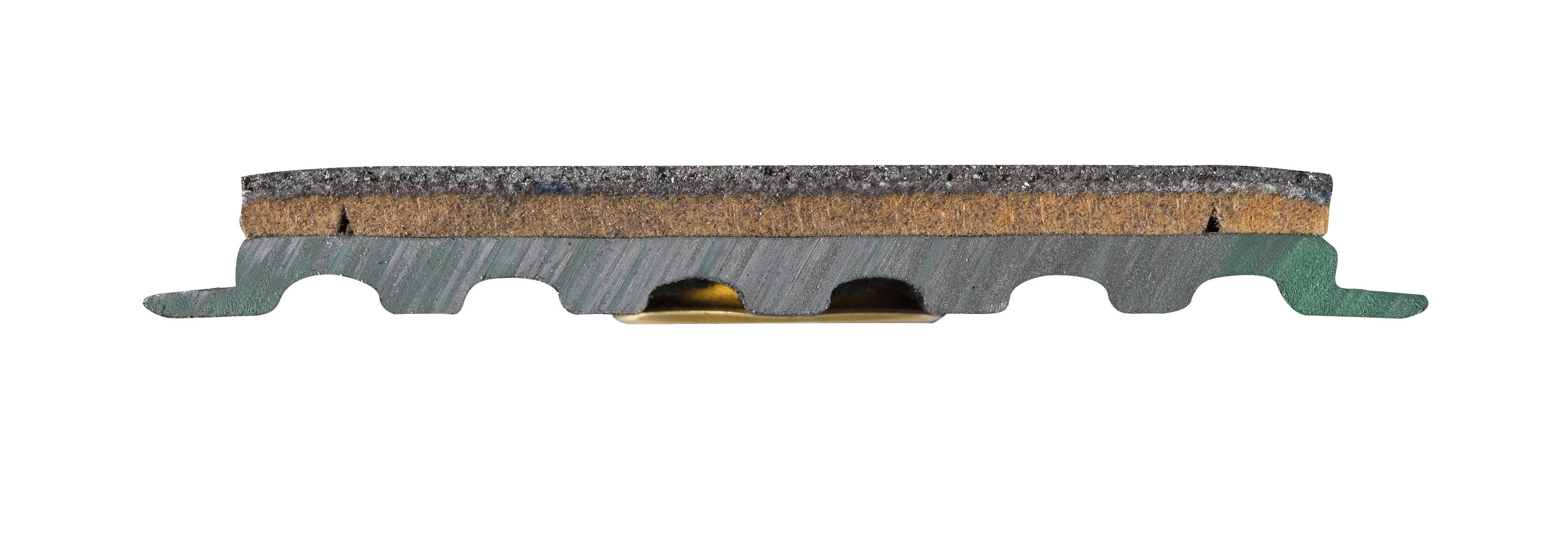

LATEX
